MIC500S Online 0-30%VOL O2 Oxygen Gas Detector PH3 HCL HCN COCL2 Gas Leak Alarm
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Produktname | MIC500S | Funktion | Gasleckage und -konzentration messen |
|---|---|---|---|
| Gas erkennen | Brennbares Gas/H2S/CO/O2/H2S/H2/VOC | Ausgangssignal | 4-20mA, RS485, Hart, Relais |
| individuelle Unterstützung | OEM, ODM, OBM | Gewicht | 2,5 kg |
| Schutzklasse | IP65/IP66/IP67 | Luftfeuchtigkeit | 0-95%RH (kein Tau) |
| Erkennungsmodus | Diffusor/Pipeline/Pumpensaugseite | Stromversorgung | 12-30V |
| Alarmtyp | Ton- und Lichtalarm | Anzeige | LCD -Anzeige |
| Verwendung | Industrieproduktion | Stichprobenmethode | Diffusion |
| Größe | 230*152*90 mm | ||
| Hervorheben | MIC500S industrial gas detector,fixed gas detector with LCD display,12-30V gas detector for safety |
||
Produkt-Beschreibung
MIC500S Online 0-30%VOL O2 Oxygen Gas Detector PH3 HCL HCN COCL2 Gas Leak Alarm
Professional-grade gas detection system with LCD display for continuous monitoring of over 500 gas types. Ideal for industrial safety applications.
Key Features
- Powerful and Convenient Humanized Function
- Multiple alarm modes, and multi-directional and three-dimensional indication alarm states
- Includes: 2 sets of relay switch output, sound & light alarm (optional configuration), and display screen visual alarm
- Alarm types include: concentration alarm, and failure alarm
- Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm
- Zero-point automatic tracking; long-term use will not be affected by the zero drift
- Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements
- Log recording: Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration
- Data recovery function; in case of mis-operation, it is possible to select partial or full recovery
- Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors

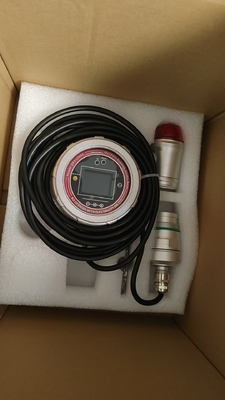

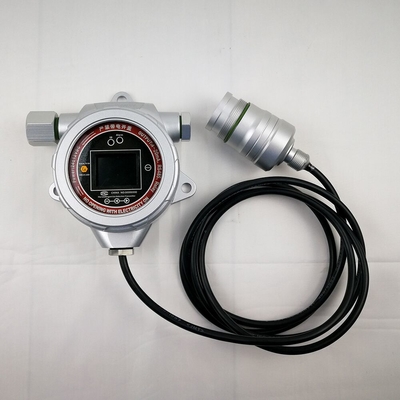

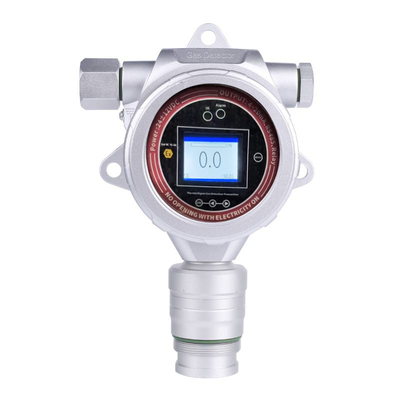

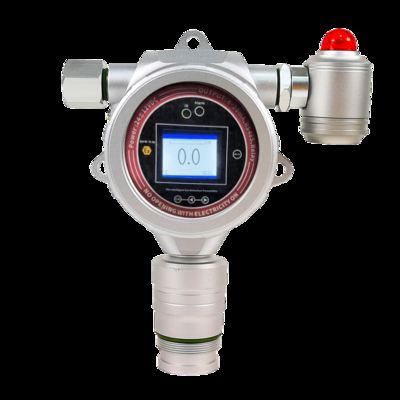

Product Images
Technical Specifications
| Detection Gas | EX, Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc. |
|---|---|
| Range | 0~1, 10, 100, 1000, 5000, 50000 ppm (mg/m³); 0~100% LEL; 0~200 mg/L; 0~20%, 50%, 100% VOL; Custom ranges available |
| Dimensions | 210*170*85mm (L*H*W) |
| Weight | 1.8 Kg |
| Installation | Pipeline Type or Wall Mounting |
| Display | 1.7-inch high-definition color screen |
| Environment | Temperature: -40℃ ~ +70℃ Humidity: ≤10 ~ 95% RH (regular) |
| Approvals | IP65; Exd Ⅱ CT6 |
| Power Supply | 12-30VDC (standard 24V), DC stabilized voltage switching power supply of 1A or greater |
| Accessories | Manual, qualification certificate, warranty card, outer packaging box |
| Optional Items | Alarms, Wireless Transmission, Pretreatment System, SD Card, Temperature/Humidity Measurement, Computer monitoring accessories |
Applications
